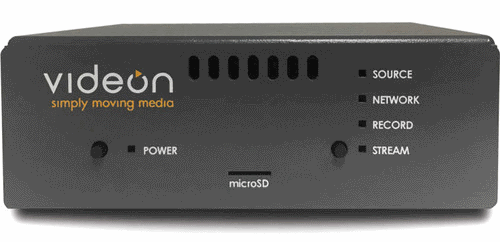

videon shavano video encoder and decoder

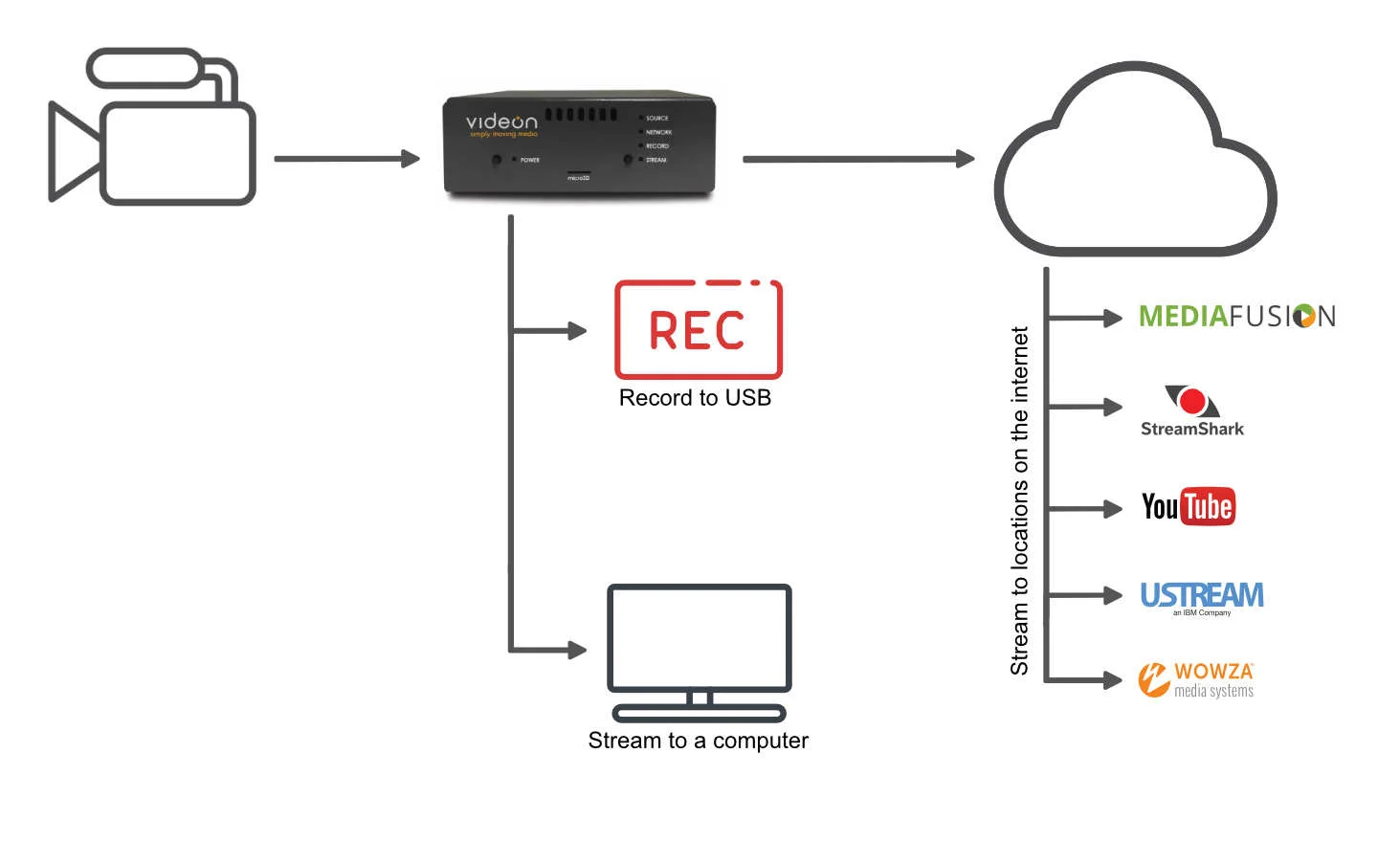

Shavano encodes a 3G SDI or an HDMI source using HEVC or H.264 compression and has the power to stream 4K video point-to-point on an internal network, point-to-point over the WAN, multicast to a local network, to a decoder located on a different network, and to online video platforms. Shavano can also be used to decode as well as encode a stream.

Video Encoding/Decoding

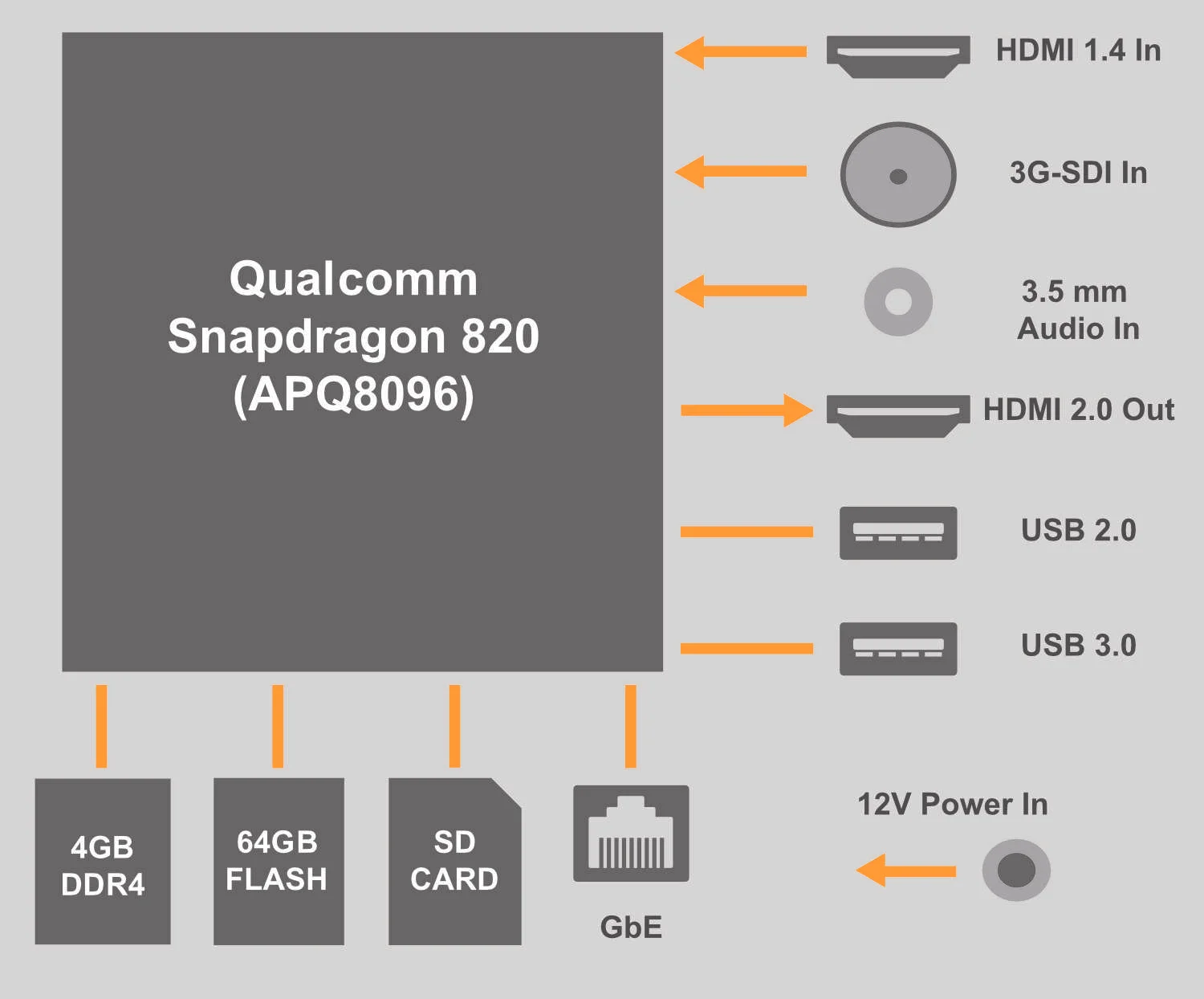

Quad Core Qualcomm Snapdragon 820 (APQ8096) processor
Input Resolutions
3840x2160p30, p25, p24; 1080p60, p59.94, p30, p29.97, p25; 720p60, p59.94, p50
Encode Resolutions
3840x2160p30, p25, p24; 1080p60, p59.94, p30, p29.97, p25; 720p60, p59.94, p50
Compression: H.265/HEVC (up to 4Kp30), H.264
Bit rates: .5Mbps-30Mbps; Rate control: Variable, Constant

Audio Encoding/Decoding
Encode: MPEG-4 AAC-LC in ADTS 64-320kbps
Encode Sampling Freq: 32, 44.1, 48KHz

Streaming Capabilities
Unicast and Multicast
RTP over UDP, Raw UDP
Up to 2x Unicast, 1x Multicast, and 1 x RTMP simultaneous channel output
RTMP
RTSP
I/O
HDMI 1.4 input up to 2160p30
3G-SDI input up to 1080p60
USB 3.0 interface
Audio embedded in HDMI and 3G/HD/SD-SDI
Audio embedded in HDMI and 3G-SDI and 3.5mm Analog Audio input
10/100/1000 Ethernet (RJ-45)

Network and Control
REST API integrates with third-party controllers and applications
Full-featured web browser based UI
Designed for tablets and desktops
Encoder and decoder configuration for unicast, multicastand RTMP
DHCP (Default) / Static IP Address
Command and Control: HTTP
Auto-detect and discover other Videon encoder and decoder units on subnet
